DB Electrical 430-20007 Power Tilt Trim Motor For Evinrude, Johnson, OMC, Sea-Drive All Models 81-92/391264, 393259, 393988, 394176, 983019 /PT301NM /18-6759/6220
4.7 (80 items)
Limited Time SaleUS$41.11 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 228712122 | Release Date | 2026/05/31 | List Price | US$27.41 | Model Number | 228712122 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please ensure to check all compatible models before making a purchase Power trim motor for OMC Johnson. 12 Volt reversible motor with 8-foot lead- 2 slide on tabs. Electric Tilt and Trim for Outboard Motor Voltage: 12 Rotation: Reversible Field Hsg OD: 64mm / 2.520in Overall Length: 132.1mm / 5.201in Shaft OD: 8mm / 0.315in Shaft Notes: Tanged Shaft New or Remanufactured: New Approximate Weight: 3.35 lbs / 1.52 kg Notes: Includes 8-foot long 2-wire harness with split tab male blade terminals. Application: OMC Marine Applications Replaces these part numbers: OMC Outboard Marine 391264, 393259, 393988, 394176, 983019 Prestolite 40-478, 40-496, PMW4001, PMW4002, PWM4002 For Evinrude engines (Marine Outboard): CE275TL (1985, 1986), CE275TX (1985, 1986), CE300TL (1985, 1986), E100STL (1988, 1989, 1990), E100WML (1984 to 1995), E100WTX (1986 to 1995), E110ML (1986, 1987, 1988, 1989), E110TL (1986, 1987, 1988, 1989), E112TSL (1994, 1995), E115JKL (1994, 1995), E115ML (1981, 1982, 1983, 1984, 1985, 1990), E115TL (1981, 1982, 1983, 1984, 1985, 1990), E115TX (1981, 1982, 1983, 1984, 1990), E120TL (1985, 1986, 1987, 1988, 1989, 1990), E120TX (1985, 1986, 1987, 1988, 1989, 1990), E125ES (1989, 1990), E140CX (1988, 1989, 1990), E140ML (1981, 1982, 1983), E140TL (1984, 1985, 1986, 1987, 1988, 1989, 1990), E140TRL (1981, 1982, 1983), E140TRX (1981, 1982, 1983), E140TX (1984, 1985, 1986, 1987, 1988, 1989, 1990), E150AN (1984), E150CX (1988, 1989, 1990), E150STL (1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990), E150TL (1984, 1985, 1986, 1987, 1988, 1989, 1990), E150TRL (1981, 1982, 1983), E150TRX (1981, 1982, 1983), E150TX (1984, 1985, 1986, 1987, 1988, 1989, 1990), E155WTL (1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992), E155WTX (1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992), E175STL (1988, 1989, 1990), E175TL (1985, 1986, 1987, 1988), E175TRL (1981, 1982, 1983), E175TRX (1981, 1982, 1983), E175TX (1985, 1986, 1987, 1988, 1989, 1990), E185ESX (1989, 1990) & more!

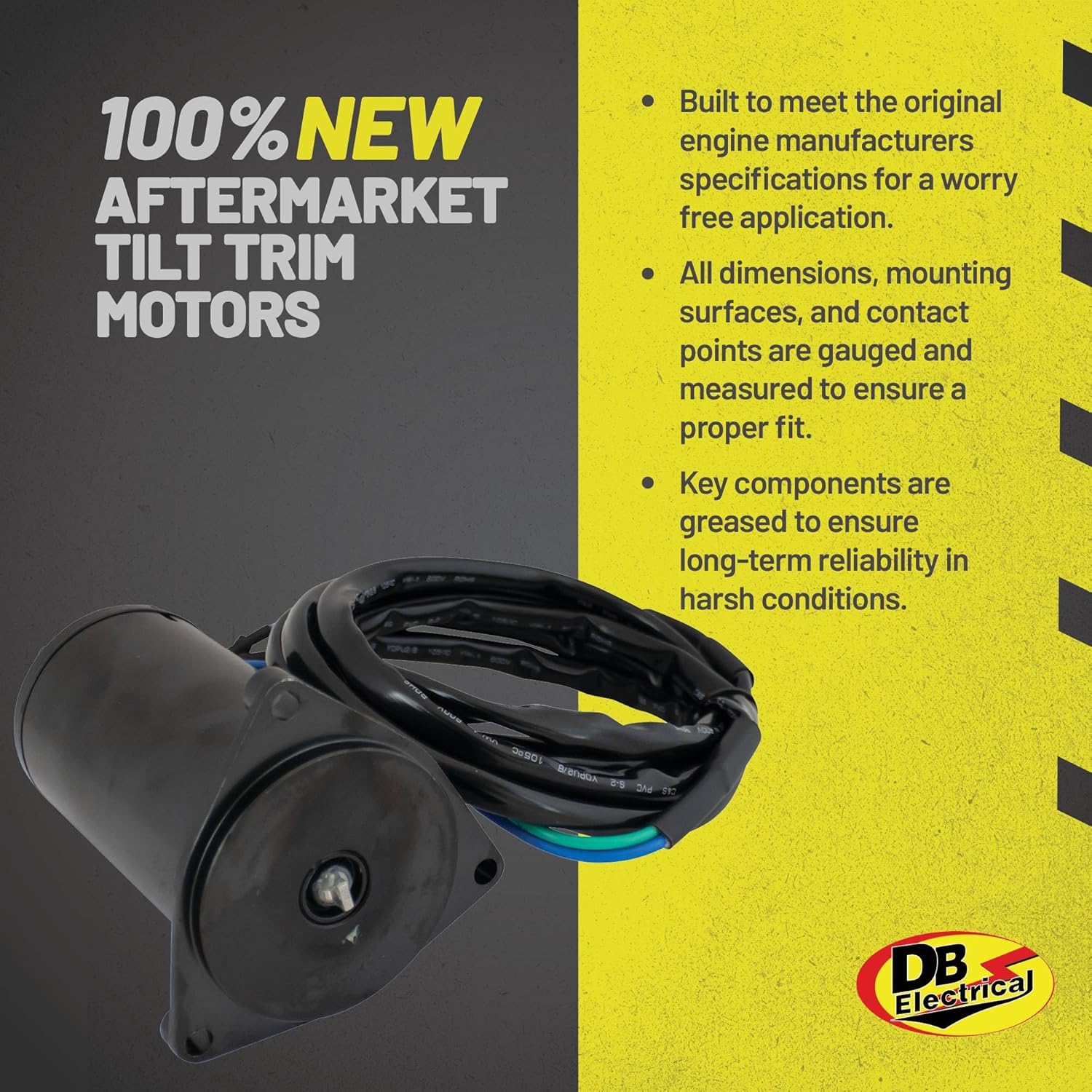

- 100% New aftermarket Tilt & Trim Motor built to meet OEM specifications
- 1-year warranty protects you after your purchase
- Factory direct pricing with no middleman markup delivers exceptional value
- Replaces OEM Numbers: CARGO: 111864 DIXIE: TM-507 HSIU CHIANG: ST-0022 LESTER: 10810 OMC: 391264, 393259, 393988, 394176, 983019 SIERRA MARINE: 18-6759
- Specs: Voltage: 12
| UPC | 701485537608 |
|---|---|
| ASIN | B019GUJNE8 |
| Voltage | 12 Volts |
| Fuel Type | Gasoline |
| Brand Name | DB Electrical |
| Engine Type | 2 Stroke |
| Manufacturer | DB Electrical |
| Model Number | 430-20007 |
| Material Type | Aluminum |
| Mounting Type | Engine Mount |
| Item Type Name | Tilt Trim Motor |
| Operation Mode | Electric |
| Maximum Horsepower | 25 Horsepower |
| Engine Displacement | 2500 Cubic Centimeters |
| Included Components | Tilt Trim Motor |
| Manufacturer Part Number | 430-20007 |
| OEM Equivalent Part Number | 0391264 |
| Recommended Uses For Product | For outboard motors |
| Manufacturer Warranty Description | 1 Year Warranty |
| Global Trade Identification Number | 00701485537608 |
